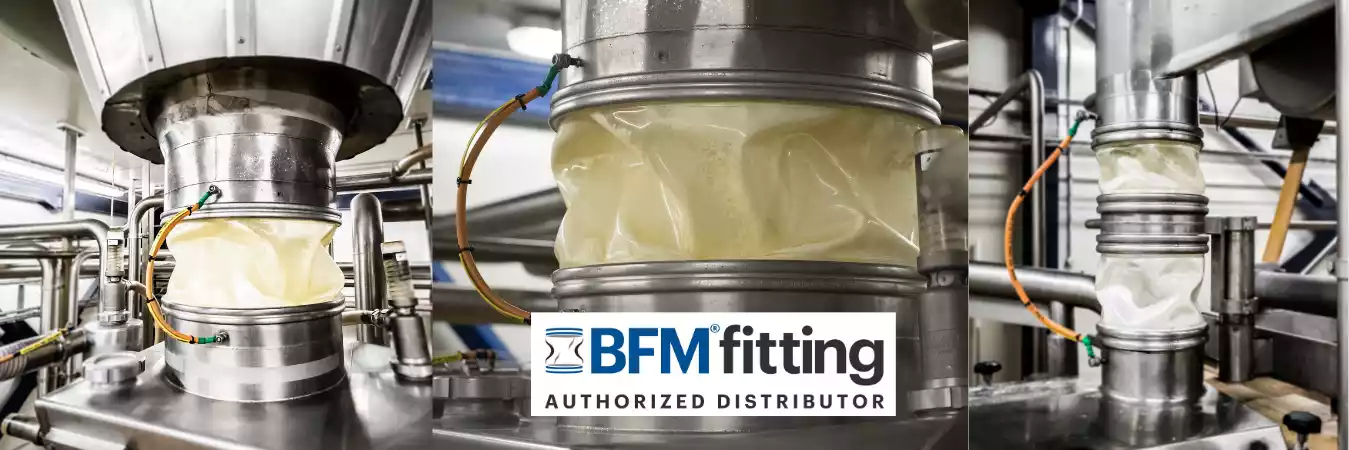

BFM FITTING

BFM

BFM® fitting are often used in various applications where they are operating under negative situations. Typically these applications are in operations where the plants are drying or processing dry powdered type products and need the machinery to be under a slight negative to keep the internals of the buildings clean from leaking dust out of machinery. In these types of applications the clear Seeflex 040E is often the media of choice as operators are able to see the product circulating the plants.

Download
Bulk Bag Loader

Bulk Bag Loader

A fully sealed, inflatable Bulk Bag Loading head that makes hygienic loading a breeze.

download

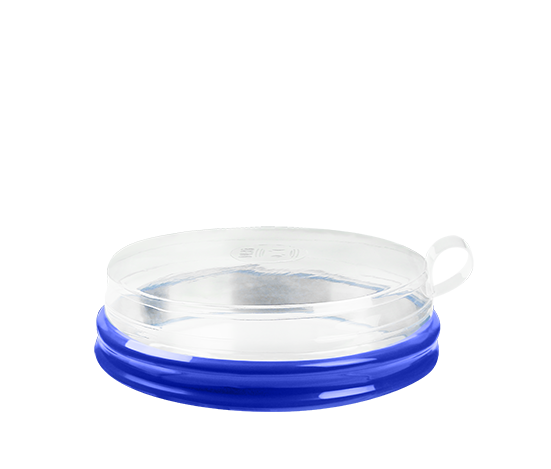

Blanking Cap

Blanking Cap

Blanking caps can be used to prevent contamination during cleaning or change over, as well as being used as a viewing port.

download

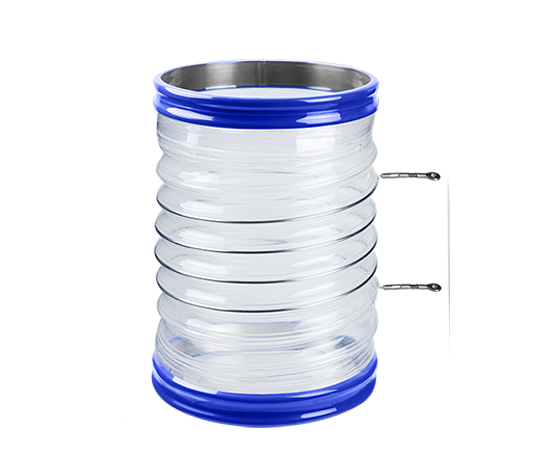

Flexi-Earthed Connector

Flexi-Earthed Connector

Flexi-Earthed connector is made from an ether based polyurethane with a 316 stainless steel wire coil and terminal lugs at each end.

download

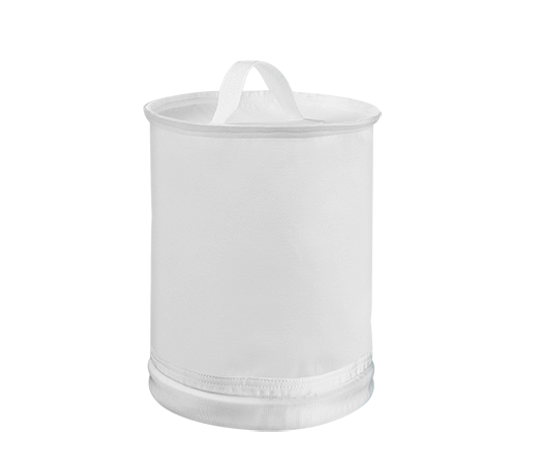

FM1 Breather

FM1 Breather

A 100% polyester needle felt breather bag designed for breathing applications such as venting hoppers and other contained vessels.

download

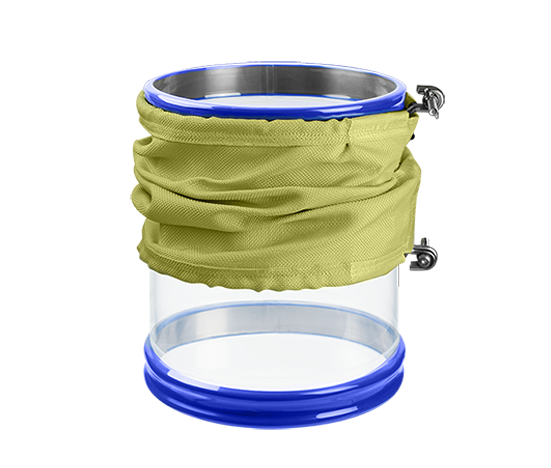

Kevlar Cover

Kevlar Cover

A flame retardant Kevlar Cover that fits over existing connectors. It is typically used in over pressure & potentially explosive applications to reduce the risk of fire.

download

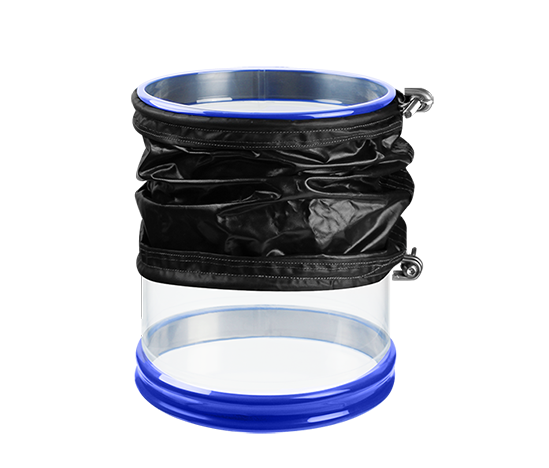

Black Out Cover

Black Out Cover

Used in light-sensitive applications to cut out light. It is made from a polypropylene fibre that meets FDA requirements for textiles used in the processing of foods.

download

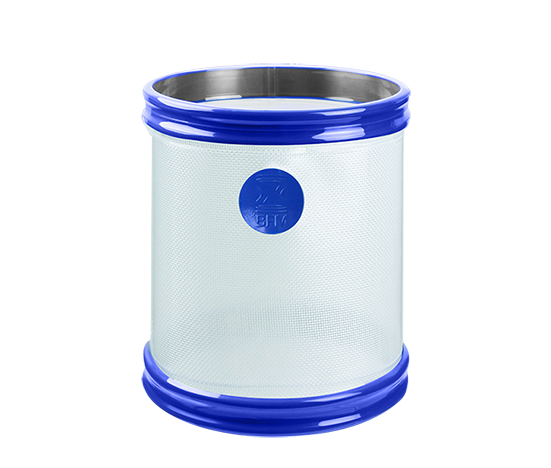

Seeflex 060ES Connector

Seeflex 060ES Connector

Pressure-resistant connector made from a clear, ether-based thermoplastic polyurethane alloy with polyester scrim.

download

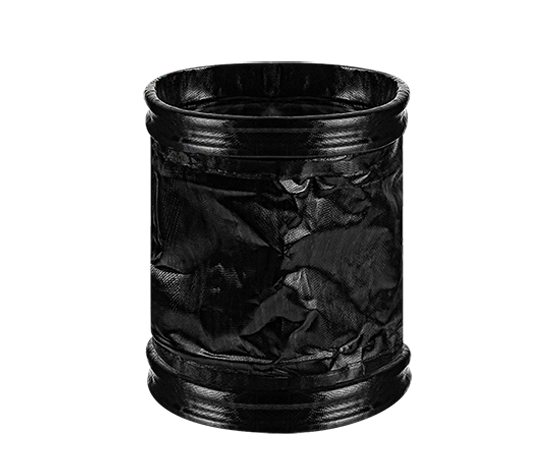

Teflex NP Black Connector

Teflex NP Black Connector

A pure PTFE flexible BFM® connector capable of running continuously at 300ºC (572ºF) temperatures, static dissipative (10^6), food grade and can be used across the full pH scale for caustic or acid products.

download

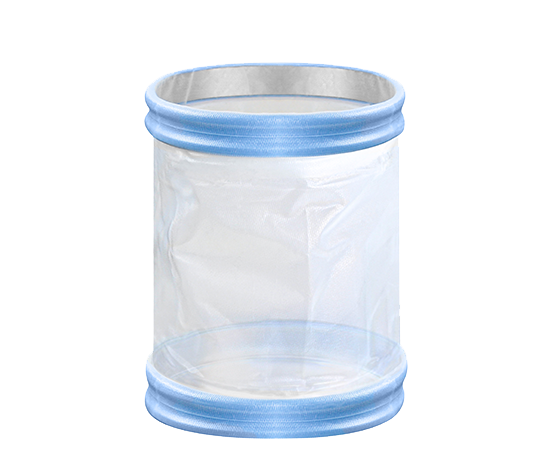

Teflex NP Opaque Connector

Teflex NP Opaque Connector

A semi-transparent, pure PTFE flexible BFM® connector capable of running continuously at 300ºC (572ºF) temperatures, food grade and can be used across the full pH scale for caustic or acid products.

download

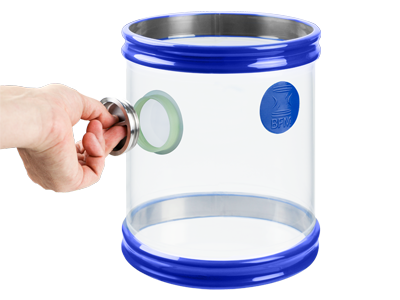

Quick Access Port

Quick Access Port

A screw-in port added to the wall of a Seeflex 040E or 060ES connector that gives easy access for metal detector drop-test balls or to take product samples without interrupting product flow (or losing product in the process).

download

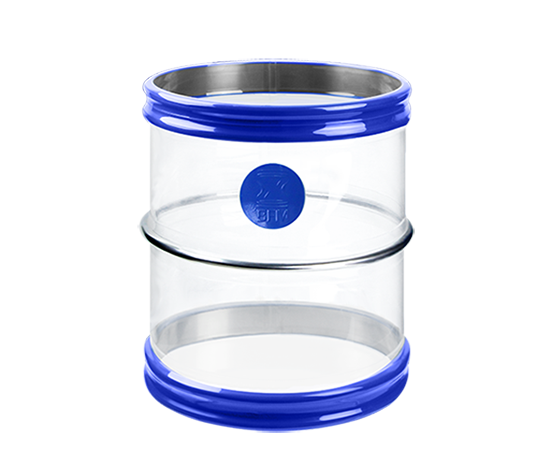

Rings

Rings

BFM® connectors can be fitted with stainless steel or plastic support rings to help keep the connector walls open.

download

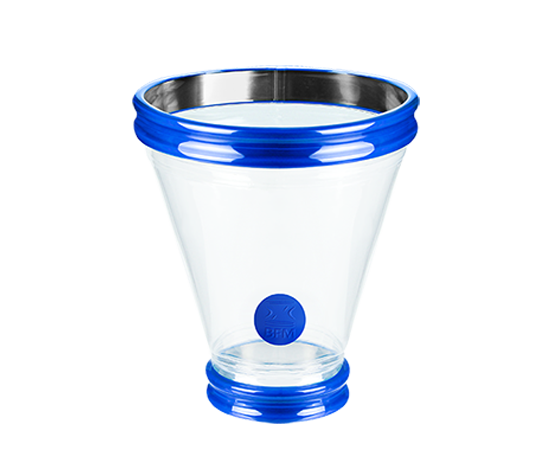

Tapered

Tapered

Tapered connectors can be created when having two equal-diameter spigots is not an option, or used as a hopper.

download

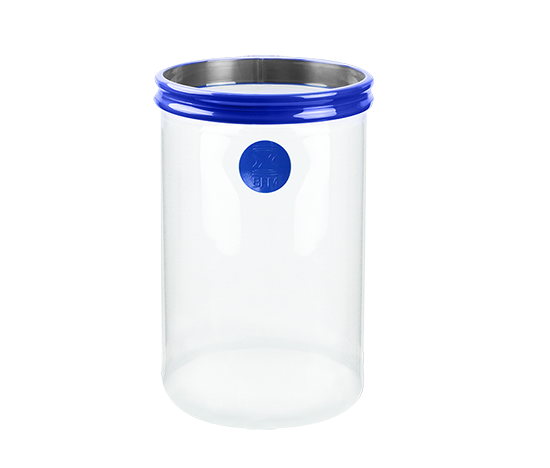

Blanking Sock / Bin

Blanking Sock / Bin

Blanking bins/socks are ideal for sifter oversize collection. Can easily be lined with plastic bags to make disposal of waste clean and easy.

download

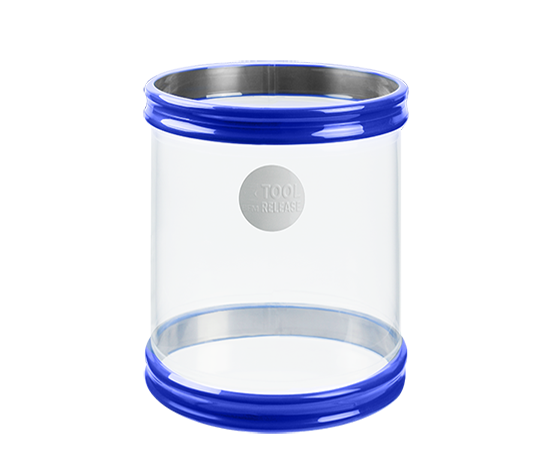

Seeflex 040E Connector

Seeflex 040E Connector

Our most popular connector that can be used in most applications. Made from clear ether-based thermoplastic polyurethane alloy it has superior wear resistance for multiple applications. It is Atex Compliant and can be used in all dust explosion hazardous...

download

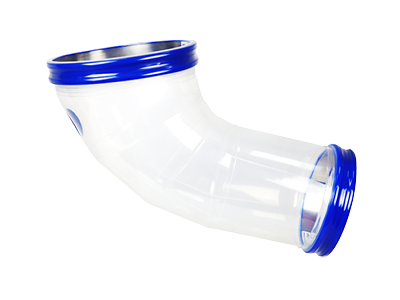

Corner Connector 040E

Corner Connector 040E

A uniquely shaped corner connector made of clear, ether-based thermoplastic polyurethane alloy with a 110° bend to aid the drainage of CIP fluid from your process equipment.

download

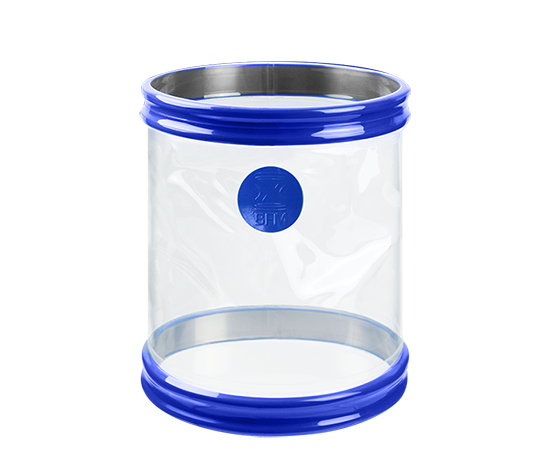

Seeflex 020E Connector

Seeflex 020E Connector

Our lightest connector made of clear, lightweight ether based thermoplastic polyurethane alloy, mainly used for weigh-scale type applications.

download

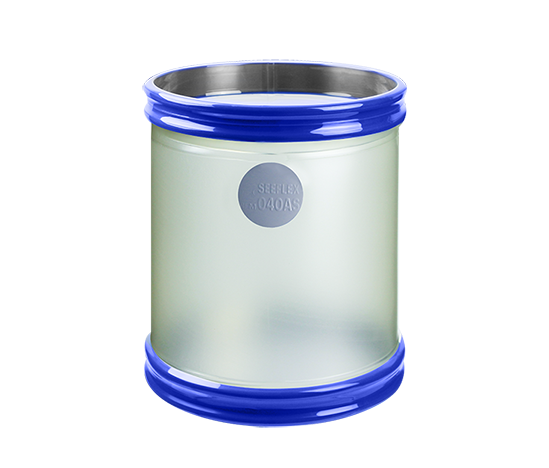

Seeflex 040AS Connector

Seeflex 040AS Connector

Our anti-static connector made of semi-transparent ether-based thermoplastic polyurethane alloy with Anti-static infusion for use where static is a problem.

download

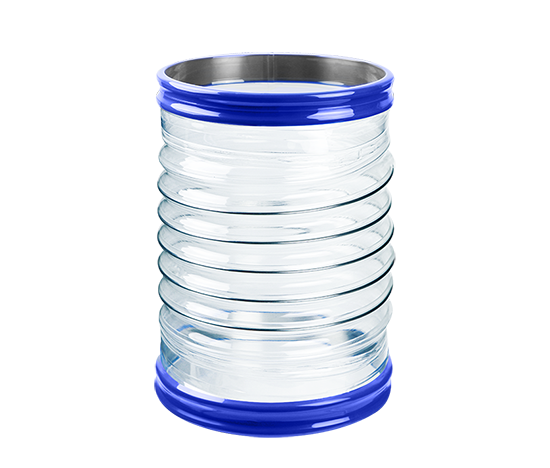

Flexi Connector

Flexi Connector

The Flexi-Connector is made from an ether-based polyurethane with a 316 stainless steel wire coil. Ideal for bag feeders, filling heads or bulk bag fillers.

download

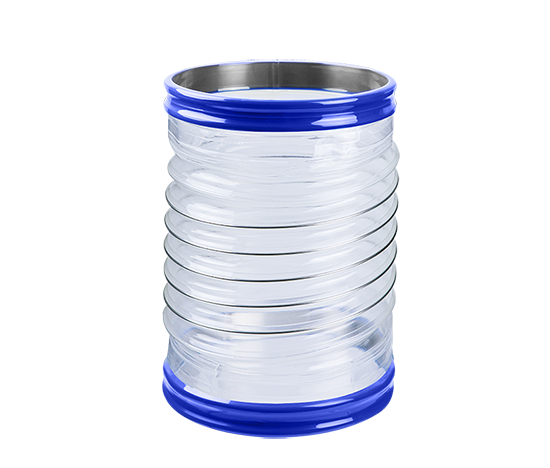

Flexi Light Connector

Flexi Light Connector

Flexi-Light is made from an ether-based polyurethane with a lighter 316 stainless steel wire coil than our standard Flexi, making it ideal for applications with lateral and vertical movement.

download

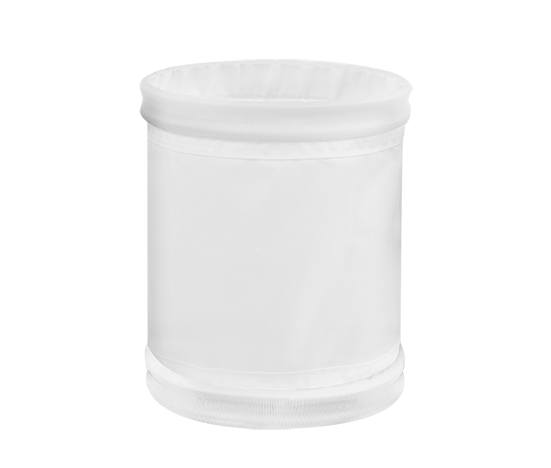

LM3 Connector

LM3 Connector

100% woven polypropylene, ideal for low temperature environments, down to -70°C (-94°F), FDA Certified for food contact.

download

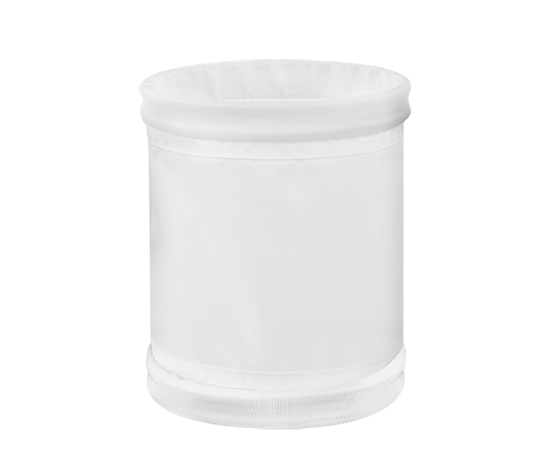

LM4 Connector

LM4 Connector

100% woven polyester connector used in higher temperature environments up to 130°C / 266°F. Atex Compliant: IBExU tested. Can be used in all explosion hazardous areas.

download

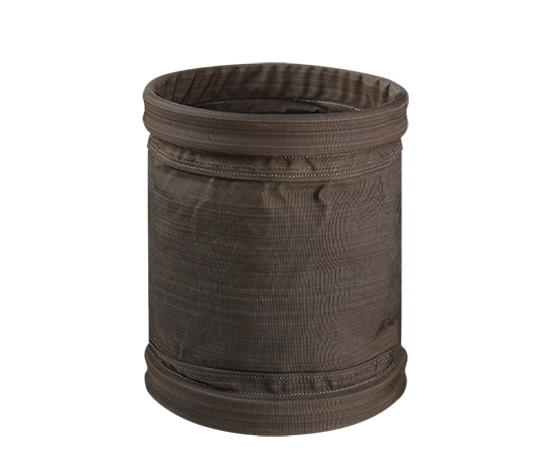

Teflex Woven Connector

Teflex Woven Connector

Pure woven PTFE; can be used in high temperature applications to 260°C / 500°F & with caustic or acid products. Compliant with: FDA 21 CFR 177.1550.

download
